Structural drawings and details play a crucial role in the construction of a building. They provide comprehensive information about the design, dimensions, materials, and connections of the structural elements, enabling contractors, engineers, and other professionals to accurately construct the building. Here are some common types of structural drawings and details you may find in a building project:

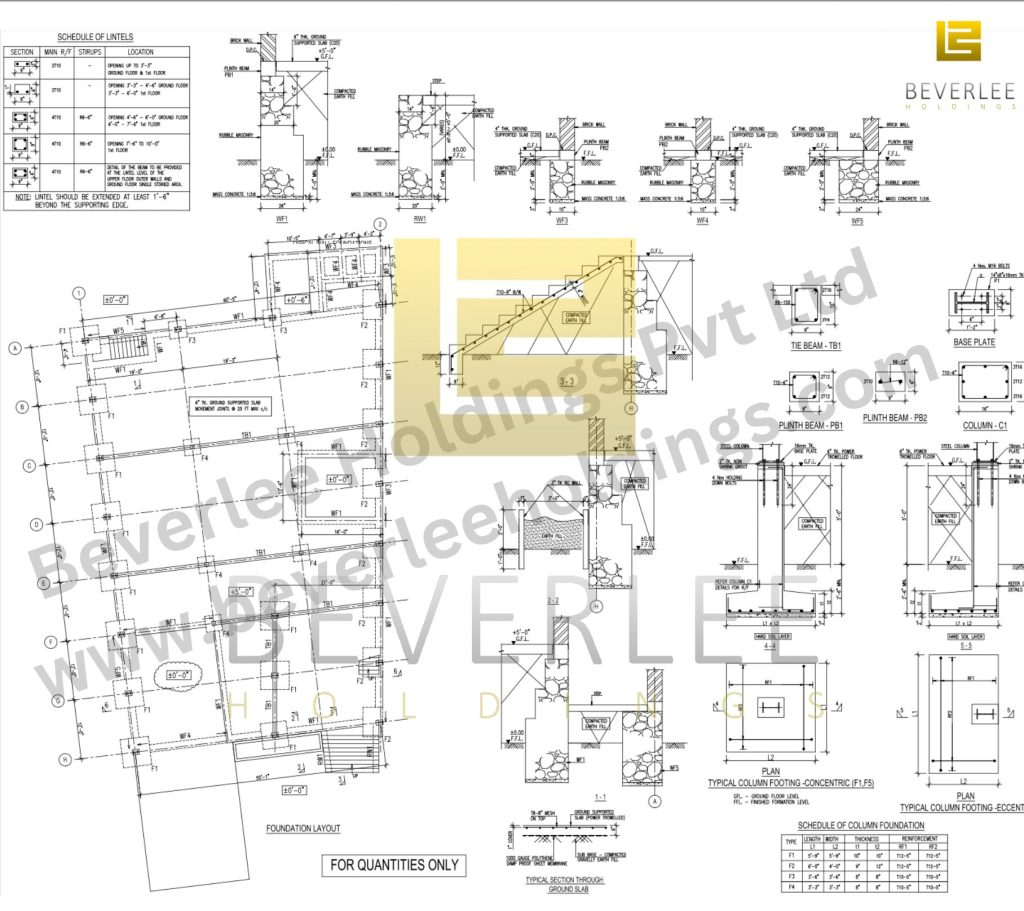

Foundation Plans: These drawings depict the layout and dimensions of the building’s foundation, including footings, piles, or slab details. They provide information on the depth, width, reinforcement, and other specifications required for the foundation.
Floor Plans: Floor plans show the layout of each floor of the building, including the arrangement of walls, columns, and other structural elements. They provide information about the location and dimensions of load-bearing walls, beams, and columns.
Framing Plans: Framing plans illustrate the structural framework of the building, including the arrangement of beams, columns, and load-bearing walls. These drawings help determine the overall stability and load distribution within the structure.
Section Drawings: Section drawings provide a vertical cut-through view of the building, revealing details about the various structural components. They show the relationship between different floors, including floor-to-floor heights, wall thicknesses, and structural details.
Elevation Drawings: Elevation drawings present a view of the building’s exterior facades, showing the placement and dimensions of structural elements such as walls, columns, and openings like windows and doors.
Detail Drawings: Detail drawings focus on specific areas or connections within the building. They provide detailed information on construction techniques, materials, and dimensions for critical elements like beam-column connections, wall sections, and roof details.
Reinforcement and Structural Steel Details: These drawings provide information about the reinforcement bars, sizes, spacing, and detailing for concrete elements such as beams, columns, slabs, and foundations. For steel structures, they include details about the steel members, connections, and fabrication requirements.
Structural Notes and Specifications: Alongside the drawings, structural notes and specifications outline additional information and requirements related to the structural design. They cover aspects such as the design codes, material standards, load requirements, and construction methods to be followed.
It’s important to note that these drawings and details are typically prepared by licensed structural engineers or architects experienced in structural design. They serve as a crucial communication tool between the design team and the construction team, Beverlee Holdings Pvt Ltd, we pride ourselves in utilizing innovative and affordable design techniques to elevate the Sri Lankan property investment landscape., Ensuring the building is constructed accurately and safely according to the intended design.
